Model No: EQP
Merek: Lambda
Kustomisasi Dukungan: OEM
Tempat Asal: Cina
Menggunakan: Optik, Inframerah, AKHROMATIS
Bentuk: PLANO
Surface Flatness: <λ/8@633nm
Material: Bk7a, Sf10 Or F2
Angular Deviation: <3arcmin
Surface Quality: <20/10(For Bk7a), <40/20(For Sf10 & F2)
Diameter Tolerance: <+0.00/-0.20mm
Clear Aperture: ≥85% of central circular dimension
Bevel: 0.3 mm (typical) x 45°
Kemasan: Kemasan Pelindung
Produktivitas: 200pcs/month
Transportasi: Express,Air,Land,Ocean
Tempat asal: CINA
Dukungan tentang: 200pcs/month
Sertifikat: ISO9001
Kode HS: 9001909090
Pelabuhan: CHANGCHUN
Jenis pembayaran: T/T
Inkoterm: FOB

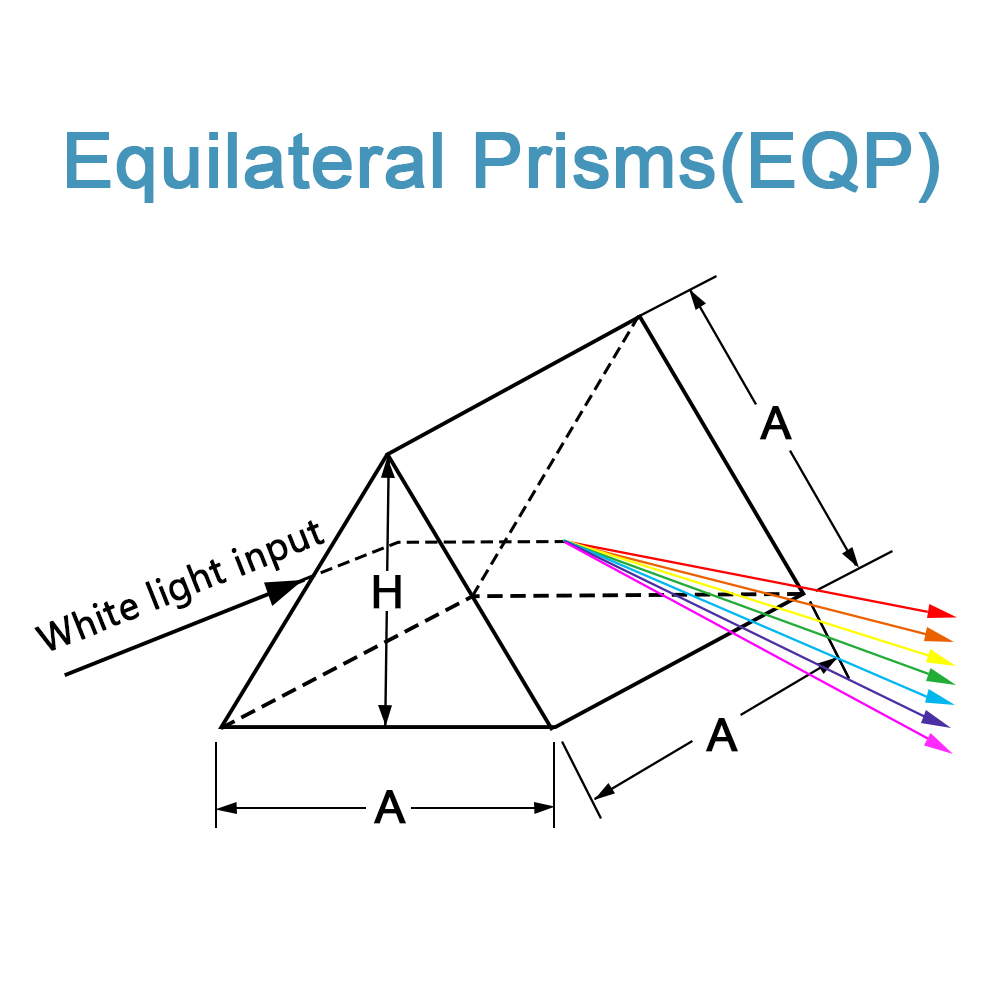

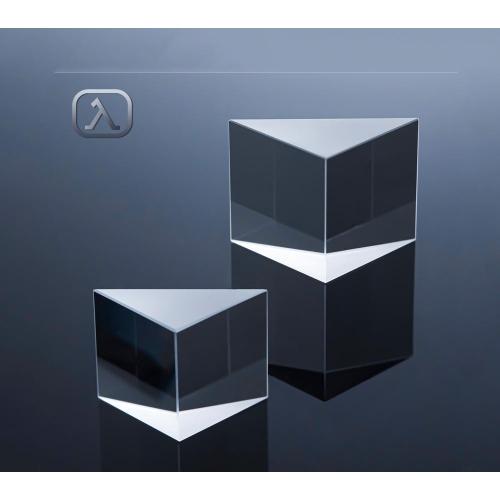

Prisma yang menyebar
Sudut 60 °
Prisma sama biasanya digunakan sebagai prisma yang menyebar. Serta prisma BK7 standar indeks yang lebih tinggi, prisma SF2 dan F2 ditawarkan untuk meningkatkan kekuatan dispersif.
Bagian No. A (mm)H (mm) Bahan
· EQP-20B · 20 · 16.2 · BK7A
· EQP-25B · 25 · 20.2 · BK7A
· EQP-30B · 30 · 24.3 · BK7A
· EQP-35B · 35 · 28.3 · BK7A
· EQP-40B · 40 · 32.4 · BK7A
· EQP-50B · 50 · 40.4 · BK7A
· EQP-60B · 60 · 48.5 · BK7A
· EQP-30SF10 · 30 · 24.3 · SF10
· EQP-60SF10 · 60 · 48.5 · SF10
· EQP-30SF2 · 30 · 24.3 · SF2
· EQP-60SF2 · 60 · 48.5 · SF2
Kategori Produk : Prisma optik > Prisma sama sisi
