Model No: EQP
Merek: Lambda
Origin: CINA
Sertifikasi: ISO9001
Kustomisasi Dukungan: OEM
Tempat Asal: Cina
Menggunakan: Optik, Inframerah, AKHROMATIS
Bentuk: PLANO
Thickness Tolerance: <±0.10mm
Clear Aperture: 90% Of Diameter
Diameter Tolerance: +0.00/0.10mm
Surface Flatness: <λ/8@633nm
Material: Bk7a, Sf10 Or F2
Angular Deviation: <3arcmin
Surface Quality: <20/10(For Bk7a), <40/20(For Sf10 & F2)
Size: 20~60mm
Kemasan: Kemasan Pelindung
Produktivitas: 200pcs/month
Transportasi: Express,Air,Land,Ocean
Tempat asal: CINA
Dukungan tentang: 200pcs/month
Sertifikat: ISO9001
Kode HS: 9001909090
Pelabuhan: CHANGCHUN
Jenis pembayaran: T/T
Inkoterm: FOB

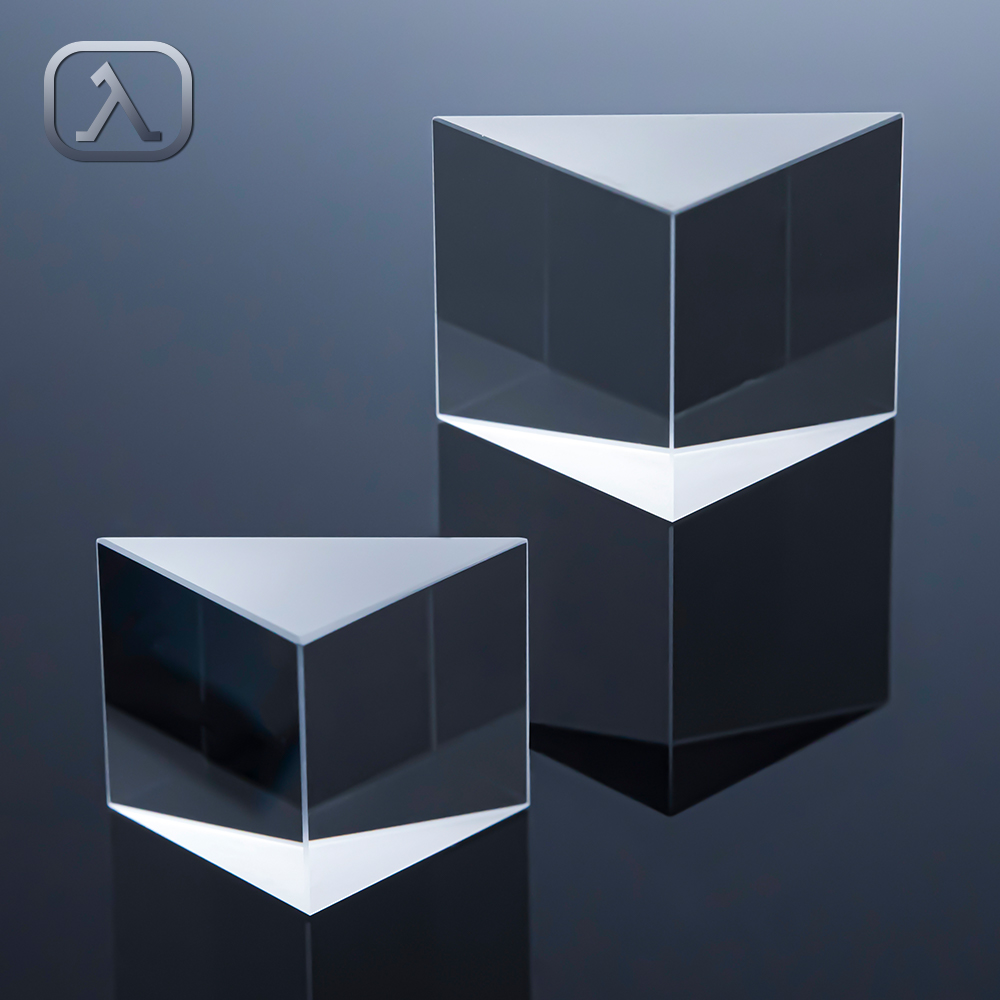

· Prisma yang menyebar
· 60 ° sudut
Prisma sisi biasanya digunakan sebagai prisma yang menyebar, serta prisma BK7 standar, indeks yang lebih tinggi. Prisma SF2 dan F2 ditawarkan untuk meningkatkan kekuatan dispersif.

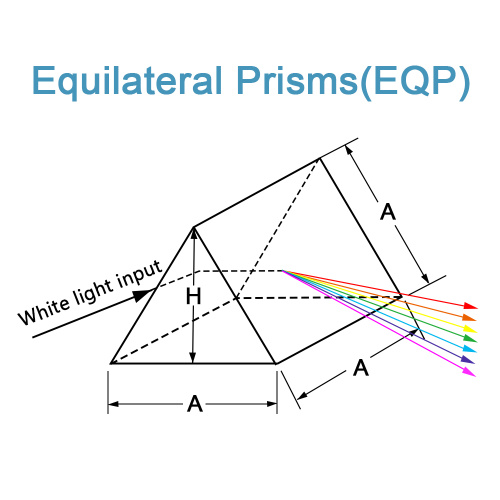

Bagian No. A (mm)H (mm) Bahan
· EQP-20B · 20 · 16.2 · BK7A
· EQP-25B · 25 · 20.2 · BK7A
· EQP-30B · 30 · 24.3 · BK7A
· EQP-35B · 35 · 28.3 · BK7A
· EQP-40B · 40 · 32.4 · BK7A
· EQP-50B · 50 · 40.4 · BK7A
· EQP-60B · 60 · 48.5 · BK7A
· EQP-30SF10 · 30 · 24.3 · SF10
· EQP-60SF10 · 60 · 48.5 · SF10
· EQP-30SF2 · 30 · 24.3 · SF2
· EQP-60SF2 · 60 · 48.5 · SF2
Kategori Produk : Prisma optik > Prisma sama sisi
