Model No: DVP
Merek: Lambda.
Kustomisasi Dukungan: OEM
Tempat Asal: Cina
Menggunakan: Optik, Inframerah, AKHROMATIS
Bentuk: PLANO
Clear Aperture: ≥ 85% in central circular dimension
Diameter Tolerance: <+0.00/-0.20mm
Surface Flatness: <λ/4@633nm
Material: Bk7a Or Uv Fused Silica
Angular Deviation: <2arcmin
Surface Quality: <20/10
Bevel: 0.3 mm(typical)x45°
Kemasan: Kemasan pelindung
Produktivitas: 200pcs/month
Transportasi: Express,Air,Land,Ocean
Tempat asal: CINA
Dukungan tentang: 200pcs/month
Sertifikat: ISO9001
Kode HS: 9001909090
Pelabuhan: CHANGCHUN
Jenis pembayaran: T/T
Inkoterm: FOB
Inverter gambar.
Garis tunda optik.

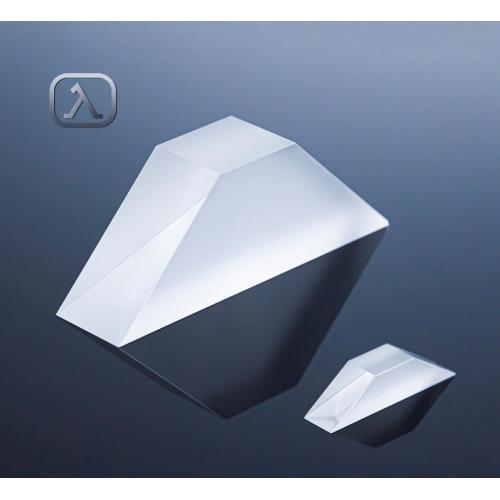

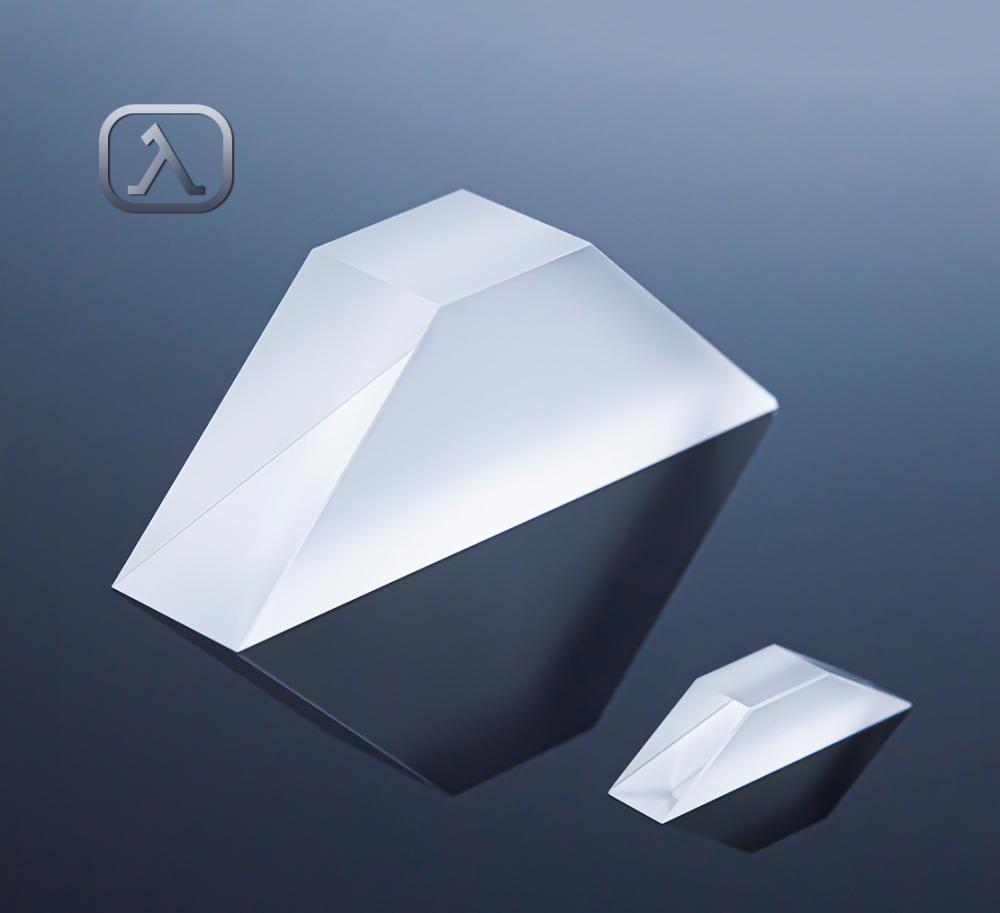

Prisma Dove secara rutin digunakan untuk membalikkan gambar atau sebagai garis tunda optik. Mereka disediakan berbagai opsi pelapisan Buta yang tidak dilapisi tersedia. Prisma silika UV menyatu direkomendasikan untuk aplikasi daya tinggi, silakan hubungi kami dengan persyaratan prisma dan pelapisan rinci Anda.
Bagian No. A (mm) B (mm)
· DVP-0625B / U · 6.0 · 25.0
· DVP-0833B / U · 8.0 · 33.6
· DVP-1042B / U · 10.0 · 42.0
· DVP-1253B / u · 12.7 · 53.3
· DVP-25106B / U · 25.4 · 106.7
Kategori Produk : Prisma optik > Merpati prisma
